Business Type | Manufacturer, Exporter, Supplier, Retailer, Wholesaler |
Material | Stainless Steel |
Shape | Round |
Application | Automobile Industry, Furniture Industry |
Click to view more |
Preferred Buyer From
Location | Worldwide |
Product Details

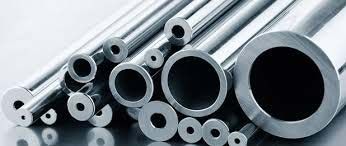

Stainless Steel Tubes that we make available are widely demanded owing to their various features such as high corrosion resistance, excellent durability, robust built and remarkable strength. They are produced using top-notch quality stainless steel and cutting-edge technology under the strict vigilance of our experts. Talk of price, we are known all over the world for providing the best quality at the most discounted prices.
Square Tubes
B x L (mm) / Wall Thickness (mm) | 1 | 1.2 | 1.5 | 2 | 2.5 |
Weight Kg. / Mtr. | |||||
12X12 | 0.36 | 0.42 | 0.52 | --- | --- |
15X15 | 0.45 | 0.54 | 0.66 | --- | --- |
16X16 | 0.49 | 0.58 | 0.71 | 0.92 | --- |
20X20 | 0.61 | 0.73 | 0.9 | 1.18 | --- |
22X22 | --- | --- | 1 | --- | --- |
25X25 | 0.77 | 0.92 | 1.14 | 1.49 | 1.84 |
30X30 | 0.93 | 1.11 | 1.38 | 1.81 | 2.24 |
35X35 | 1.09 | 1.3 | 1.62 | 2.13 | 2.64 |
40X40 | 1.25 | 1.5 | 1.86 | 2.45 | 3.03 |
45X45 | 1.41 | 1.69 | 2.1 | 2.77 | 3.43 |
50X50 | 1.57 | 1.88 | 2.34 | 3.09 | 3.83 |
Rectangular Tubes
B x L (mm) / Wall Thickness (mm) | 1 | 1.2 | 1.5 | 2 | 2.5 |
WEIGHT KG./MTR. | |||||
20X10 | 0.453 | 0.538 | 0.66 | --- | |
20X15 | 0.533 | 0.634 | 0.78 | --- | |
25X10 | 0.533 | 0.634 | 0.78 | 1.02 | |
25X15 | 0.613 | 0.729 | 0.9 | 1.18 | |
30X10 | 0.613 | 0.729 | 0.9 | --- | |
30X15 | 0.693 | 0.825 | 1.02 | 1.34 | |
30X20 | 0.772 | 0.921 | 1.14 | 1.49 | |
35X20 | 0.852 | 1.017 | 1.26 | 1.65 | |
40X10 | --- | --- | 1.14 | 1.5 | |
40X15 | 0.852 | 1.017 | 1.26 | 1.65 | |
40X20 | 0.926 | 1.112 | 1.38 | 1.81 | |
40X27 | --- | --- | 1.55 | --- | |
40X30 | 1.091 | 1.303 | 1.62 | 2.13 | |
50X10 | --- | --- | 1.38 | --- | |
50X20 | 1.091 | 1.303 | 1.62 | 2.13 | |
50X25 | --- | 1.399 | 1.74 | 2.29 |
Stainless Steel Threaded Tubes
Stock Size | ||
Outside Diameter (mm) | Wall Thickness (mm) | Length (mm) |
20mm | 1.5mm | 3000mm |
25mm | 1.5mm | 3000mm |
32mm | 1.5mm | 3000mm |
50mm | 1.5mm | 3000mm |
